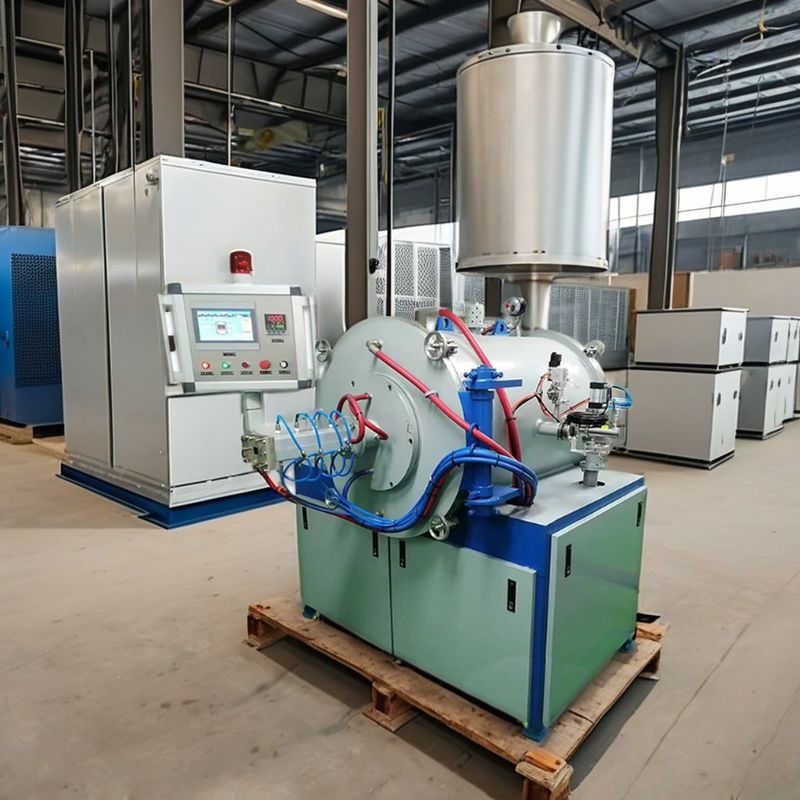

Vacuum Sintering Furnace Graphitization Machine For High Temperature Carbon Fiber

Product Details

Brand Name: Jingtan

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD18,000-100,000/SET

Packaging Details: wooden case

Delivery Time: 60 days

Payment Terms: L/C/T/T

Supply Ability: 10pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          High Temperature Vacuum Sintering Furnace, Graphitization Machine For Carbon Fiber


Place Of Origin:	Hunan, China	Type:	Induction Furnace
Usage:	Heat Treatment Furnace	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Gearbox, Pump
Brand Name:	Jingtan	Voltage:	380
Weight (t):	3 T	Warranty:	1 Year
Key Selling Points:	Patented Product	Max. Operating Temperature:	3000℃
Temperature Uniformitity:	≤±10℃	Working Atmosphere In The Furnace:	Vacuum, Hydrogen, Nitrogen, Inert Gases, Etc
Temperature Measuring Range:	1000-3000 Or 900-3500℃	Chamber Size:	Dia.80*1200
Temperature Measurement:	Far Infrared Optical Temperature Measurement	Temperature Measurement Accuracy:	0.2-0.75%
Warranty Of Core Components:	1 Year

Place Of Origin:	Hunan, China
Type:	Induction Furnace
Usage:	Heat Treatment Furnace
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Gearbox, Pump
Brand Name:	Jingtan
Voltage:	380
Weight (t):	3 T
Warranty:	1 Year
Key Selling Points:	Patented Product
Max. Operating Temperature:	3000℃
Temperature Uniformitity:	≤±10℃
Working Atmosphere In The Furnace:	Vacuum, Hydrogen, Nitrogen, Inert Gases, Etc
Temperature Measuring Range:	1000-3000 Or 900-3500℃
Chamber Size:	Dia.80*1200
Temperature Measurement:	Far Infrared Optical Temperature Measurement
Temperature Measurement Accuracy:	0.2-0.75%
Warranty Of Core Components:	1 Year

Description

Vacuum Sintering Furnace Graphitization Machine For High Temperature Carbon Fiber

High Production Efficiency Foreign Thermal Insulation Materials Vacuum Sintering Furnace Graphitization Machine

Products Description

Product Usage

(1) For high temperature graphitization and carbonization of carbon fiber.
(2) other materials that can be sintered and purified in the carbon environment.

Product Advantage

High-performance intelligent ultra-high temperature equipment with strong support of domestic scientific research institutes and universities. The operating temperature of the equipment can reach 3000℃.

Model	JT-TWL-35	JT-TWL-137	JT-TWL-282	JT-TWL-602	JT-TWL-1000
Max. Operating Temperature	Normal Temperature 3000℃
Chamber Size (mm)	φ30*500	φ50*700	φ60*1000	φ80*1200	φ100*2000
Working Atmosphere in the Furnace	Vacuum, hydrogen, nitrogen, inert gases, etc
Temperature Uniformitity	≤±10℃
Temperature Measurement	Far infrared optical temperature measurement
Temperature Measurement Accuracy	0.2-0.75%
Temperature Measuring Range	1000-3000 or 900-3500℃

Product Features

1. Adopt foreign thermal insulation material and furnace structure, using temperature up to 3000℃.
2. When carbon fiber wire is graphitized, the wire enters from one end and leaves from the other end, and the production efficiency reaches the standard level.
3. Vertical temperature measurement is adopted.

4. The placement of the temperature sensor does not affect cable routing.
5. Used for the graphitization of phosphorus sheet graphite or carbon powder, adopting push-boat mode, continuous production, good production efficiency, energy saving.
6. Using digital display intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces a total of 400 sections different process heating curve.
7. Comprehensive PLC water, electricity, gas automatic control and protection system control cabinet and furnace body connection cable can be as long as 20m, and remote control in equipment.

Company Profile

Qualification and Patents

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

Patent for carbonization sintering furnace

Patent for bottom discharge graphitization furnace:

Patent for carbon fiber continuous furnace

Patent for high temperature graphitization furnace

Patent for high temperature vacuum hot pressure furnace

Patent for high temperature continuous furifing graphitization furnace

Production process

Customer Photoes

Logistics System All Around the World.

Customer Cooperation Cases

FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
