2400C Vacuum Sintering Furnace High Temperature Remote Control For Cemented Carbide

Product Details

Place of Origin: China

Brand Name: Jingtan

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD15,000-100,000/SET

Packaging Details: wooden case

Delivery Time: 60 days

Payment Terms: L/C/T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  2400C Vacuum Sintering Furnace, Remote Control Vacuum Sintering Furnace, 2400C High Temperature Sintering Furnace


Place Of Origin:	Hunan, China	Type:	Induction Furnace
Usage:	Sintering Furnace	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Engine, Motor
Brand Name:	Jingtan	Voltage:	380
Weight (t):	5 T	Warranty:	1 Year
Key Selling Points:	Competitive Price, Remote Control	Limit Temperature:	2400℃
Temperature Measurement Accuracy:	0.2--0.75%	Temperature Measurement Control:	Program And Manual
Working Zone Size:	300300500	Loading Capacity:	45L
Temperature Uniformity:	≤±5℃	Temperature Control Accuracy:	±1℃
Ultimate Heating Rate:	75℃/min	Furnace Body:	SS 304
Warranty Of Core Components:	1 Year

Place Of Origin:	Hunan, China
Type:	Induction Furnace
Usage:	Sintering Furnace
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Engine, Motor
Brand Name:	Jingtan
Voltage:	380
Weight (t):	5 T
Warranty:	1 Year
Key Selling Points:	Competitive Price, Remote Control
Limit Temperature:	2400℃
Temperature Measurement Accuracy:	0.2--0.75%
Temperature Measurement Control:	Program And Manual
Working Zone Size:	300300500
Loading Capacity:	45L
Temperature Uniformity:	≤±5℃
Temperature Control Accuracy:	±1℃
Ultimate Heating Rate:	75℃/min
Furnace Body:	SS 304
Warranty Of Core Components:	1 Year

Description

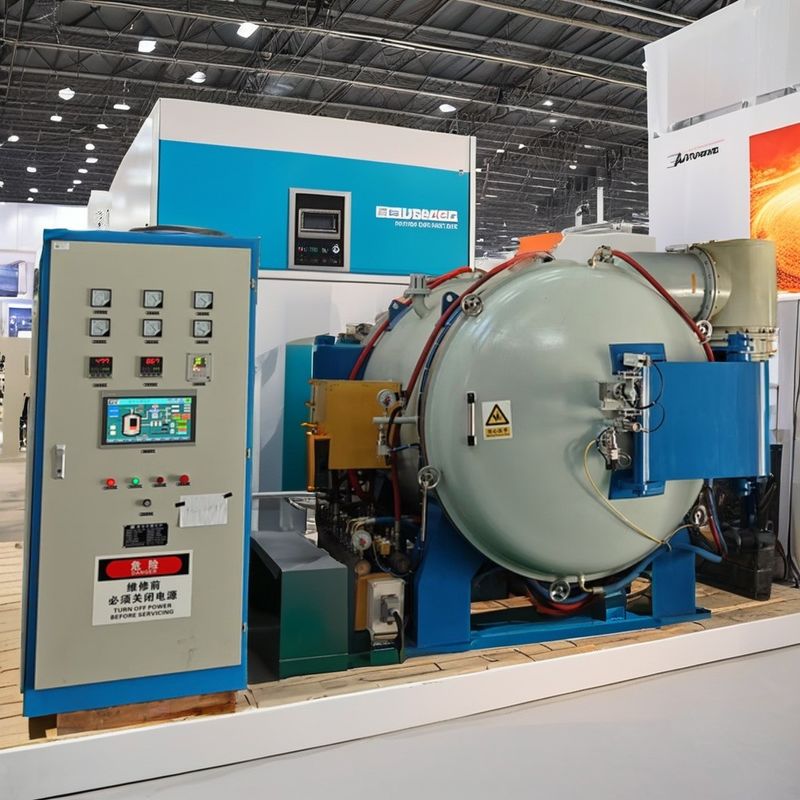

2400C Vacuum Sintering Furnace High Temperature Remote Control For Cemented Carbide

Advanced Temperature Measurement Vacuum Sintering Furnace Induction Furnace with Motor Engine New Used Condition from China

Product Introduction

Vacuum sintering furnace,adopting the most advanced temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology, is a particularly suitable for the cemented carbide industry (process permits
can also be applied to other industries) high-performance intelligent electric furnace. The medium frequency induction sintering furnace produced by our factory is a kind of intermittent gas (vacuum) protection furnace. According to the needs of sintering process time, multiple electric furnaces can be configured with a single power supply to respectively heat up and cool down a single furnace, so as to achieve continuous work.

Product Usage

For sintering cemented carbide, copper-tungsten alloy, tungsten,molybdenum, alnico-cobalt permanent magnet, SmCo5, Sm2Co17, Ndfeb, titanium alloy and other alloy materials.

Feature 1

Ultra-high temperature furnace body within 2400℃ can fully meet the sintering of various materials.

High performance medium frequencycontactor is used for automatic conversion of furnace body.
Comprehensive PLC water, electricity, gas automatic control and protection system.

Feature 2

Using digital display intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and
can store 20 pieces a total of 400 sections different process heating curve.

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
