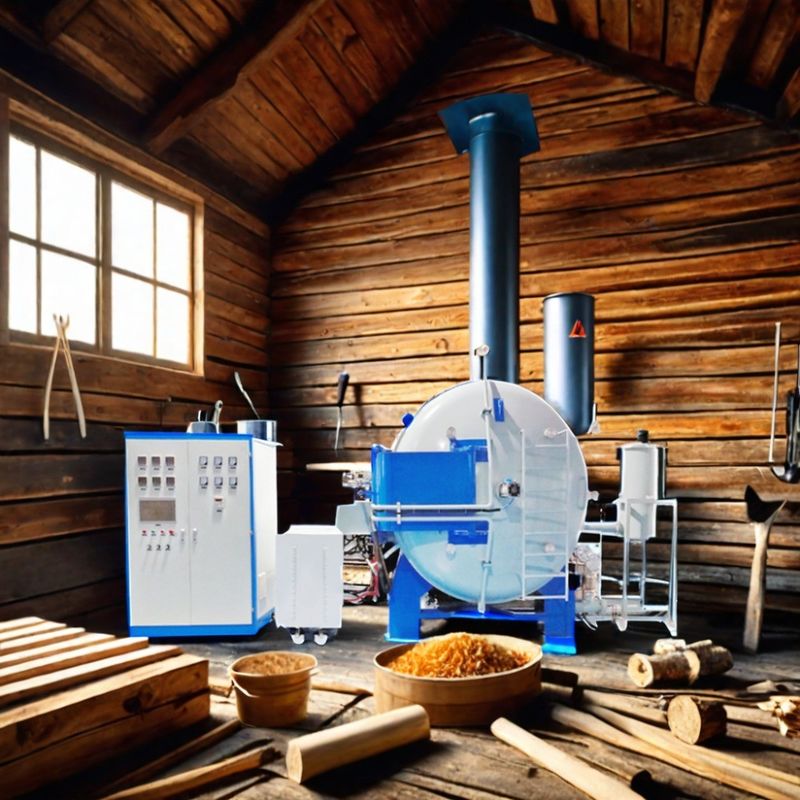

5000L Industrial Vacuum Carbonization Furnace For Hydron Nitron Inert Gas Carbonization

Product Details

Brand Name: Jingtan

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD8,000-60,000/SET

Packaging Details: wooden case

Delivery Time: 60 days

Payment Terms: L/C/T/T

Supply Ability: 10pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Industrial Vacuum Carbonization Furnace, 5000L Industrial Carbonization Furnace, 380V Vacuum Carbonization Furnace


Place Of Origin:	Hunan, China	Type:	Resistance Furnace
Usage:	Carbonization Furnace	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Engine, Gear
Brand Name:	Jingtan	Voltage:	380V
Dimension(lwh):	Customization	Weight (t):	4
Warranty:	1 Year	Key Selling Points:	Competitive Price
Limit Temperature:	1600℃	Temperature Uniformity:	≤±10℃
Temperature Measurement Range:	800~2400℃ Or 0~2400℃	Temperature Measurement Accuracy:	0.2~0.75%
Temperature Control Accuracy:	±1℃	Cooing Water Pressure:	0.3Mpa
Heating Mode:	Resistance

Place Of Origin:	Hunan, China
Type:	Resistance Furnace
Usage:	Carbonization Furnace
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Engine, Gear
Brand Name:	Jingtan
Voltage:	380V
Dimension(lwh):	Customization
Weight (t):	4
Warranty:	1 Year
Key Selling Points:	Competitive Price
Limit Temperature:	1600℃
Temperature Uniformity:	≤±10℃
Temperature Measurement Range:	800~2400℃ Or 0~2400℃
Temperature Measurement Accuracy:	0.2~0.75%
Temperature Control Accuracy:	±1℃
Cooing Water Pressure:	0.3Mpa
Heating Mode:	Resistance

Description

5000L Industrial Vacuum Carbonization Furnace For Hydron Nitron Inert Gas Carbonization

Vacuum Carbonization Furnace

The filament bundle is similar to the horizontal preoxidation furnace body structure, but because of the short residence time, several slit heating plate long furnace with different temperatures are used, and the filament bundle is not in contact with the heating surfac

Non-wovens or felt preoxidized wires can be selected from the carbonization furnace, but if the carbonization temperature is not high, it can also be carried out in the conveyor belt furnace. Each carbonization furnace is equipped with inert gas inlet and outlet.

Model

JT-THL-

45-D

JT-THL-

128-D

JT-THL-

375-D

JT-THL-

720-D

JT-THL-

1568-D

JT-THL-2560-D

JT-THL-

5000-D

Constant Temperature Zone(mm)

300*300*500

400*400*800

500*500*1500

600*600*

2000

700*700*

3000

800*800*

4000

1000*1000*

5000

High Temperature Volume

45L

128L

375L

720L

1568L

2560L

5000L

Limit Temperature

1200℃-1600℃

Working Atmosphere in the Furnace

Vacuum, hydrogen, nitrogen, inert gas

Temperature Uniformity

≤±10℃

Temperature Measurement

Far-infrared optical temperature measurement

Temperature Measurement Range

800~2400℃ or 0~2400℃

Temperature Measurement Accuracy

0.2~0.75%

Temperature Control Accuracy

±1℃

Temperature Control

Program control and manual control

Limit Heating Rate

200℃/ Min (empty furnace, depending on the volume of high temperature zone and furnace structure)

Cooing Water Pressure

0.3MPa

Heating Mode

Resistance

(1) Graphite heating plate to use high purity, high density and high strength graphite plate, preferably isotropic graphite plate.Because its bending strength and compression strength are 2.8 times and 3.5 times of ordinary graphite, respectively.

(2) The temperature of section ⅰ, ⅱ and ⅲ of the temperature zone can be independently regulated to meet the different requirements of different filament bundles on process conditions.

(3)The connection technology between the power supply and the electrode is very important. The connection is firm, the contact resistance is small, it is better to use specially processed graphite bolts. The cooling of the joint is a key technology, but also often prone to accidents, processing and welding technology must be in place.Water pressure switch and alarm should be provided for shell water cooling.

(4)The outlet end should be set up with a cooling device, so that the fiber is cooled below 500℃ before entering the space, to prevent oxidation. Because carbon fiber starts to slowly oxidize at 350 degrees Celsius in air. In addition to the water cooling system, the cooling device can also be cooled by nitrogen. It can be detected the composition of the gas in the furnace at any time, especially the content of trace oxygen.
