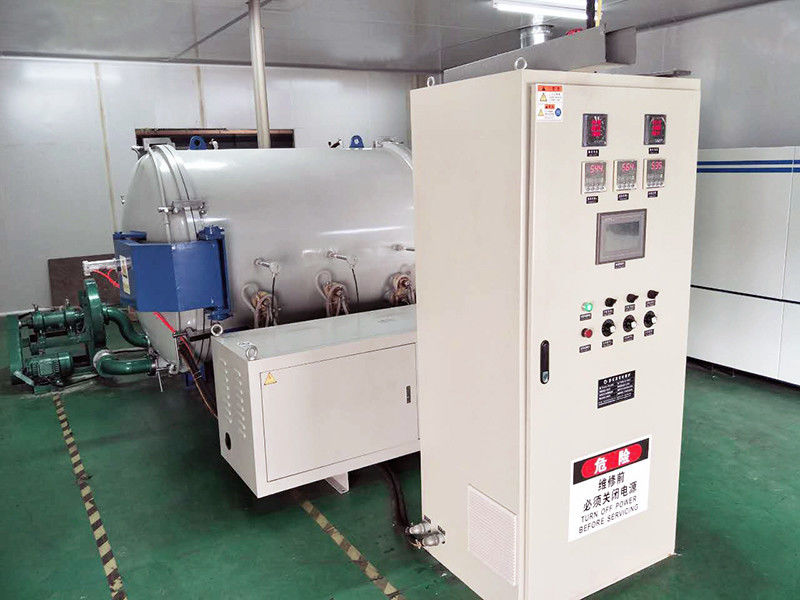

The Atmosphere Protective Sintering Furnace

Name: The Atmosphere Protective Sintering Furnace
Brand: Hunan Jingtan Automation Equipment Co., LTD.
SKU: JT-QSL-45
Price: 45.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Jingtan

Certification: CE

Model Number: JT-QSL-45

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD10,000-80,000/SET

Packaging Details: wooden case

Delivery Time: 60 days

Payment Terms: L/C/T/T

Supply Ability: 5pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Temperature Uniformity:	±5°C	Atmosphere:	Inert Gas Or Vacuum
Max Temperature:	2400℃	Color:	Customized
Safety Features:	Over Temperature Protection, Leakage Protection	Cooling Rate:	10-15°C/min
Material:	Stainless Steel

Temperature Uniformity:	±5°C
Atmosphere:	Inert Gas Or Vacuum
Max Temperature:	2400℃
Color:	Customized
Safety Features:	Over Temperature Protection, Leakage Protection
Cooling Rate:	10-15°C/min
Material:	Stainless Steel

Description

The Atmosphere Protective Sintering Furnace

Product Usage:

Suitable for lithium battery materials, rare earth materials, magnetic materials, mineral materials, ceramic devices, refractory materials, activated carbon carbonization, metal powder and other new materials under the protection of atmosphere sintering treatment and reduction treatment, mainly tungsten powder reduction treatment, nitriding treatment and carbonization treatment.

Product Features:

· 2200℃ ultra-high temperature furnace body, compatible with fine, medium and coarse granular WC powder and composite material carbonization heating process.

· Digital display programmable intelligent temperature control system is adopted to complete the temperature measurement and temperature control process with automatic precision. The system can heat up according to the given temperature rise curve, and can store 20 pcs a total of 400 sections different process heating curve.

Adopt pure water cooling system and digital flow monitoring system.

Performance medium frequency contactor is used for automatic conversion of furnace body;

Comprehensive PLC automatic control and protection system for water, electricity and gas.

Main Technical Parameter :

Model	JT-QSL-45	JT-QSL-128	JT-QSL-375	JT-QSL-720		JT-QSL-1568	JT-QSL-2560	JT-QSL-5000		JT-QSL-7200	JT-QSL-11700
High Temperature Zone Volume(mm)	300300500	400400800	5005001500	6006002000		7007003200	8008004000	100010005000		120012005000	150015005200
Loading Capacity	45L	128L	375L	720L		1568L	2560L	5000L		7200L	11700L
Temperature Uniformity	≤±5℃				≤±10℃				≤±15℃
Operating Temperature	1000℃-2400℃
Working Atmosphere in the Furnace	Vacuum, hydrogen, nitrogen, inert gas, etc
Temperature Measurement	Low temperature section thermocouple temperature measurement, high temperature section far infrared optics
Temperature Measurement Range	800-2500℃ or Normal Temperature-2200℃
Temperature Control	Program control and manual control
Temperature Measurement Accuracy	0.2-0.75%
Temperature Control Accuracy	±1℃					±3℃
Ultimate Heating Rate	75℃/Min					25℃/Min
