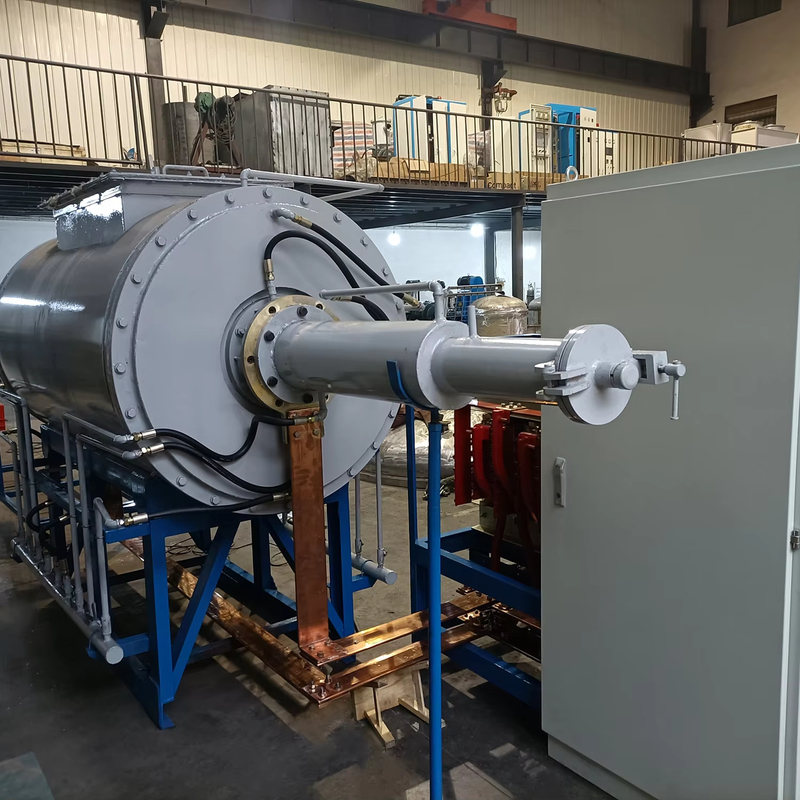

Continuous Loading and Unloading Automatic Control Graphitization Furnace with Max. Temperature 2800℃

Product Details

Place of Origin: Hunan, China

Brand Name: Jingtan

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $35,000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Max. Temperature 2800℃ Graphitization Furnace, Continuous Loading and Unloading Graphitization Furnace, Automatic Control Graphitization Furnace


Type:	Induction Furnace	Max Temperature:	2800℃
Working Temperature:	2600℃	Voltage:	Three Phase 380V
Weight:	2 T	Temperature Control:	PID Auto Control
Protective Gas:	Ar	Temperature Measurement:	Far Infrared
Cooling Mode:	Cooling By Circulating Water	Cooling System:	Closed Water Cooling Tower
Core Components:	PLC, Motor, Pump, Cylinder	Boat Size:	Φ120320mm, Φ150400mm, Φ200*420mm
Rated Power:	120 KW, 180 KW, 220 KW	Working Method:	Push Boat Intermittent Feeding
Capacity:	200 Kg/d, 400 Kg/d, 700 Kg/d

Type:	Induction Furnace
Max Temperature:	2800℃
Working Temperature:	2600℃
Voltage:	Three Phase 380V
Weight:	2 T
Temperature Control:	PID Auto Control
Protective Gas:	Ar
Temperature Measurement:	Far Infrared
Cooling Mode:	Cooling By Circulating Water
Cooling System:	Closed Water Cooling Tower
Core Components:	PLC, Motor, Pump, Cylinder
Boat Size:	Φ120320mm, Φ150400mm, Φ200*420mm
Rated Power:	120 KW, 180 KW, 220 KW
Working Method:	Push Boat Intermittent Feeding
Capacity:	200 Kg/d, 400 Kg/d, 700 Kg/d

Description

Continuous Loading and Unloading Automatic Control Graphitization Furnace with Max. Temperature 2800℃

Continuous Loading and Unloading Automatic Control Three Phase Power Supply Graphite Boat-pushing Oven

Graphite Boat Pushing Furnace

This industrial furnace is designed for continuous high temperature graphitization purification of graphite powder and products. It combines high temperature method with chemical method purification processes, achieving operating temperatures up to 2600℃ with capability for long-term continuous operation.

Technical Specifications

Model	GJC-ZTL-10	GJC-ZTL-20	GJC-ZTL-30
Capacity (kg/d)	200	400	700
Max. Temperature (℃)	2800
Temperature Control Method	PID auto control
Protective Gas	Ar
Rated Power (kw)	120	180	220
Voltage (V)	Three phase 380v
Temperature Measurement Method	Infrared measurement
Working Method	Push boat intermittent feeding
Boat size	Φ120*320mm	Φ150*400mm	Φ200*420mm
Cooling Mode	Cooling by circulating water

Key Features

Advanced heating technology provides high service temperature and extended service life
Furnace tube designed for continuous 20-30 day operation without stopping
Excellent sealing performance minimizes gas consumption during continuous material processing
Push-boat production mode enables continuous operation
Fully automated boat loading, pushing, discharging and reversing mechanism ensures stable product quality
Modular furnace body length can be customized to specific requirements
Includes remote control, fault diagnosis and software upgrade capabilities
Three-phase power supply ensures balanced power distribution and stable performance
