ISO-Qualified 2800 Degree Maximum Temperature Graphitization Furnace with New Heating Technology

Product Details

Place of Origin: Hunan, China

Brand Name: OEM

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $60,000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          2800 Degree Maximum Temperature Graphitization Furnace, ISO-Qualified Resistance Furnace, New Heating Technology Graphite Pushing Boat Furnace


Type:	Resistance Furnace	Voltage:	380V
Weight:	2 T	Maximum Temperature:	2800 ℃
Temperature Control:	PID Auto Control	Working Method:	Push Boat Intermittent Feeding
Core Components:	PLC	Protective Gas:	Ar
Rated Power:	120-220 KW	Temperature Measurement:	Infrared Measurement
Boat Size:	Φ120320mm To Φ200420mm	Cooling Mode:	Cooling By Circulating Water
Production Capacity:	200-700 Kg/d	Power Supply:	3 Phase
Furnace Body Length:	Adjustable

Type:	Resistance Furnace
Voltage:	380V
Weight:	2 T
Maximum Temperature:	2800 ℃
Temperature Control:	PID Auto Control
Working Method:	Push Boat Intermittent Feeding
Core Components:	PLC
Protective Gas:	Ar
Rated Power:	120-220 KW
Temperature Measurement:	Infrared Measurement
Boat Size:	Φ120320mm To Φ200420mm
Cooling Mode:	Cooling By Circulating Water
Production Capacity:	200-700 Kg/d
Power Supply:	3 Phase
Furnace Body Length:	Adjustable

Description

ISO-Qualified 2800 Degree Maximum Temperature Graphitization Furnace with New Heating Technology

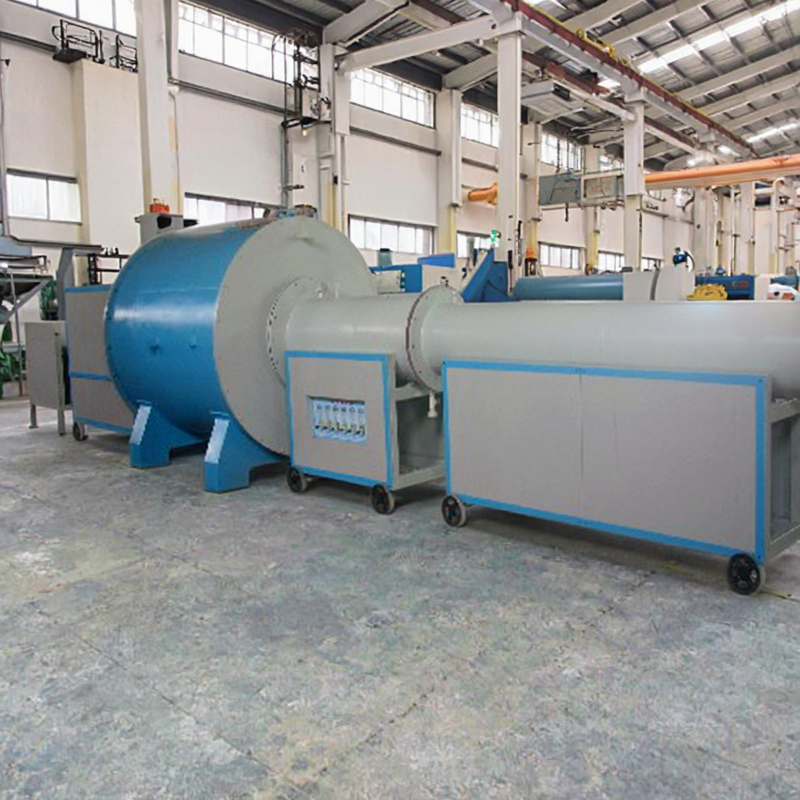

ISO-Qualified 2800°C Heat Treat Furnace Graphite Boat Pushing Resistance Furnace

Advanced graphite pushing boat furnace designed for high-temperature powder metallurgy processing and graphite material treatment under protective atmosphere.

Technical Specifications

Model	GJC-ZTL-10	GJC-ZTL-20	GJC-ZTL-30
Capacity (kg/d)	200	400	700
Maximum Temperature	2800°C
Temperature Control	PID Auto control
Protective Gas	Ar
Rated Power (kw)	120	220	180
Voltage	3 phase 380V
Boat Size	Φ120*320mm	Φ200*420mm	Φ150*400mm

Key Features

Advanced heating technology for high service temperature and extended lifespan
Furnace tube designed for continuous 20-30 day operation without shutdown
Efficient sealing system minimizes protective gas consumption
Push-boat production mode enables continuous furnace operation
Optional automated boat loading, pushing, and discharging mechanisms
Modular furnace body length adjustable to customer requirements
Remote monitoring and control capabilities including diagnostics
Three-phase balanced power supply for stable performance

Company Profile

We are your thermal treatment solutions partner with 14+ years experience under ISO9001:2015 quality management system, supported by strong R&D and stable supply chain.

Patent Certifications

Recognized by the State Intellectual Property Office of China for our innovative furnace technologies:

Global Logistics

Our comprehensive logistics network ensures reliable worldwide delivery.

Frequently Asked Questions

Are you a factory or trading company?

Yes, we are China's leading high-temperature vacuum furnace manufacturer with 14+ years experience, granted with multiple patent certifications.

Do you offer customization or OEM services?

Our powerful R&D team and advanced equipment enable us to provide both standard models and fully customized furnace solutions.

What are your competitive advantages?

Rapid response to inquiries
Stringent quality control
Domestic stable supply chain
On-time delivery
Comprehensive after-sales support including on-site installation
