2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Product Details

Place of Origin: China

Brand Name: Jingtan

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD15,000-100,000/SET

Packaging Details: wooden case

Delivery Time: 60 days

Payment Terms: L/C/T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                              2800 Degree Heat Treat Continuous Furnace, Continuous Graphite Boat Pushing Furnace


Description

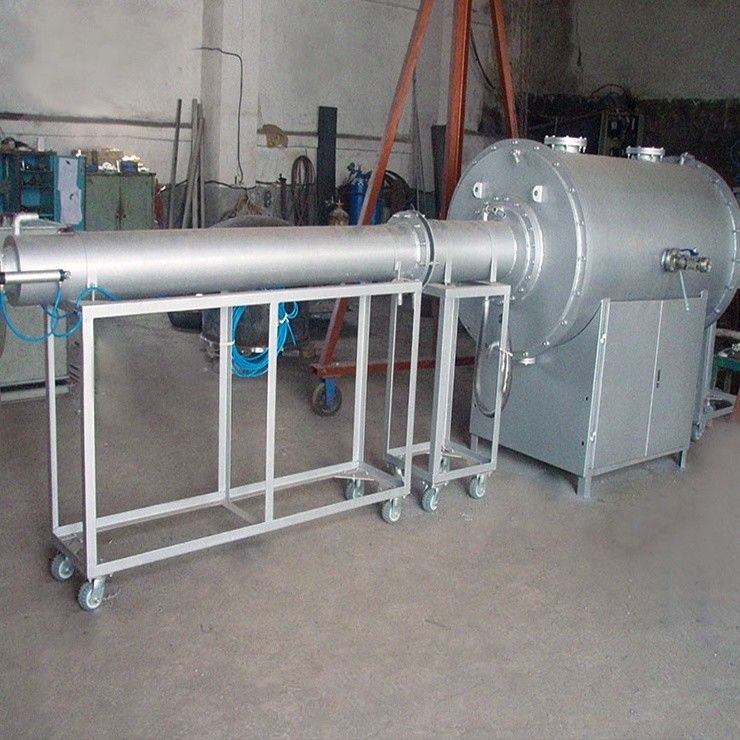

2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Products Description

Graphite pushing boat furnace:

Graphite pushing furnace uses graphite plate bearing graphite material box, with a push rod box after box to push to the heating
area, in the atmosphere protection state of powder reduction, sintering of powder metallurgy products and other heat treatment.

Suitable for powder metallurgy processing and graphite material processing.

Model	JT-ZTL-10	JT-ZTL-20	JT-ZTL-30
Capacity(kg/d)	200	400	700
Maximum Temperature(℃)	2800
Temperature Control Method	PID Auto control
Protective Gas	Ar
Rated Power(kw)	120	220	180
Voltage(V)	3 phase 380
Temperature Measurement Method	Infrared measurement
Working Method	Push boat intermittent feeding
Boat size	Φ120*320mm	Φ200*420mm	Φ150*400mm
Cooling Mode	cooling by circulating water

Features:

1) Adopt new heating technology, high service temperature and long service life;

2) Long service life of furnace tube, continuous production 20-30 days without stop the furnace;

3) Continuous material in and out, good sealing performance, less gas consumption;

4) Adopt push-boat production mode, continuous production can be continuously furnace;

5) Automatic boat loading, pushing, discharging and reversing mechanism can be selected, with stable product quality and low labor intensity;

6) The length of furnace body can be increased or decreased according to the actual situation of users;

7) With remote control function, remote control, fault diagnosis and software upgrade;

8) Three-phase power supply, three-phase power balance, stable performance.

Features 1:

1)Adopt new heating technology, high service temperature and long service life;

2)Long service life of furnace tube, continuous production 20-30 days without stop the furnace;
3) Continuous material in and out, good sealing performance, less gas consumption;
4) Adopt push-boat production mode, continuous production can be continuously furnace;

Features 2:

5) Automatic boat loading, pushing, discharging and reversing mechanism can be selected, with stable product quality and low labor intensity;
6) The length of furnace body can be increased or decreased according to the actual situation of users;
7)With remote control function, remote control, fault diagnosis and software upgrade;
8) Three-phase power supply, three-phase power balance, stable performance.
