1600C High Temp Heat Treatment Furnace Intermediate Frequency Induction Sintering Furnace

Product Details

Brand Name: Jingtan

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD8,000-60,000/SET

Packaging Details: wooden case

Delivery Time: 60 days

Payment Terms: L/C/T/T

Supply Ability: 10pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          High Temp Heat Treatment Furnace, 1600C Induction Sintering Furnace, Intermediate Frequency Induction Sintering Furnace


Place Of Origin:	Hunan, China	Brand Name:	Jingtan
Weight (kg):	2000	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Pump
Warranty:	1 Year	Maximum Use Temperature:	1600℃,2000℃,2400℃
High Temperature Volume:	0.01m³,0.02m³,0.03m³,0.05m³,0.1m³,0.15m³, 0.2m³,0.3m³	Temperature Measurement Accuracy:	0.2~0.75%
Condition:	New	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Showroom Location:	Egypt, Turkey, United States, Germany, Viet Nam, Peru
Applicable Industries:	Manufacturing Plant, Powder Matellurgy Industry

Place Of Origin:	Hunan, China
Brand Name:	Jingtan
Weight (kg):	2000
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Pump
Warranty:	1 Year
Maximum Use Temperature:	1600℃,2000℃,2400℃
High Temperature Volume:	0.01m³,0.02m³,0.03m³,0.05m³,0.1m³,0.15m³, 0.2m³,0.3m³
Temperature Measurement Accuracy:	0.2~0.75%
Condition:	New
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Showroom Location:	Egypt, Turkey, United States, Germany, Viet Nam, Peru
Applicable Industries:	Manufacturing Plant, Powder Matellurgy Industry

Description

1600C High Temp Heat Treatment Furnace Intermediate Frequency Induction Sintering Furnace

Specification

Product Advantage:

1). Performance intelligent electric furnace,specially suitable for cemented carbide industry (process permits can also be applied to other industries)

2). Absorb the temperature measurement, temperature control technology, intelligence, new material technology and furnace design
technology at home and abroad.

3). A single set of power supply can be configured with multiple electric furnaces, which are heated by electricity and cooled by
electricity respectively for a single furnace to achieve continuous work.

Application:

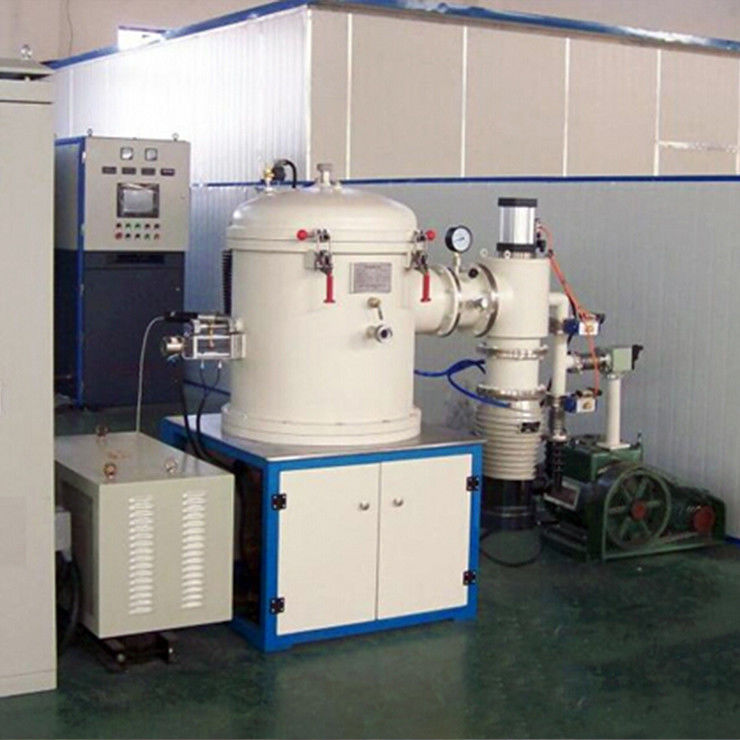

The intermediate frequency induction sintering furnace produced by our factory is an intermittent gas (vacuum) protection furnace.

vacuum/atmosphere sintering of cemented carbide, copper-tungsten alloy, tungsten, molybdenum, alnico-cobalt permanent magnet, SmCo5, Sm2Co17, Ndfeb, titanium alloy and other alloy materials.

Maximum Use Temperature	1600℃,2000℃,2400℃
High Temperature Volume	0.01m³,0.02m³,0.03m³,0.05m³,0.1m³,0.15m³, 0.2m³,0.3m³
Working atmosphere n furnace	Vacuum,hydrogen, nitrogen,inert gases,etc
Temperature Uniformity	≤±10℃
Temperature Measurement	Infrared optical temperature measurement,temperature measurement range 800~2400℃或0~2400℃
Temperature Measurement accuracy	0.2~0.75%
Temperature Control	Program control and manual control
Temperature Control accuracy	±1℃
Limit heating rate	200℃/min(Empty Furnace,depending on the volume of high temperature zone and furnace structure)

Features:

Ultra-high temperature furnace body within 2400℃ can fully meet the sintering of various materials. Using digital display intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.

Adopt internal circulation pure water cooling system, digital flow monitoring system;High performance medium frequency contactor is used for automatic conversion of furnace body.

Comprehensive PLC water, electricity, gas automatic control and protection system.

Product parameter:

Features 1:

Features 2:

Adopt internal circulation pure water cooling system, digital flow monitoring system;High performance medium frequency contactor is used for automatic conversion of furnace body.
Comprehensive PLC water, electricity, gas automatic control and protection system.
