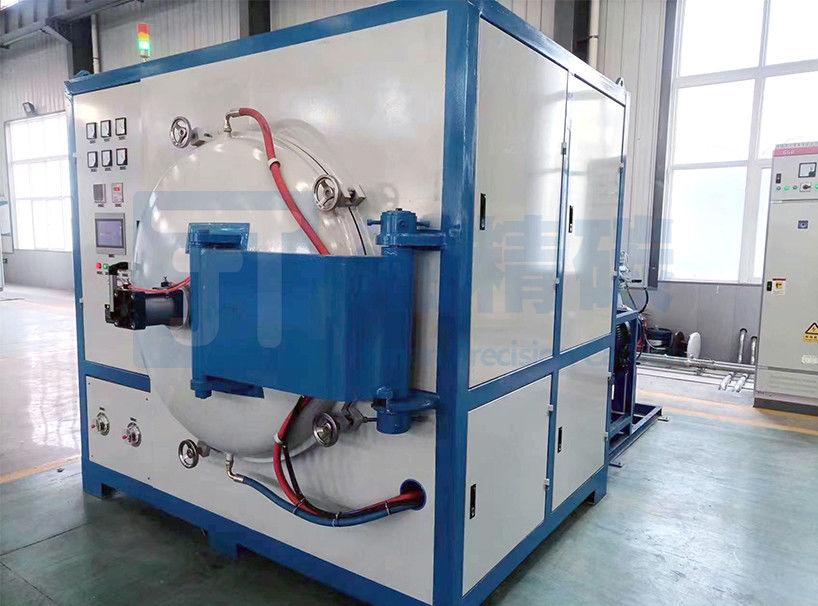

1500 Degree High Temperature Sublimation Furnace For Silicon Carbon Vapor Deposition

Product Details

Brand Name: Jingtan

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD10,000-80,000/SET

Packaging Details: wooden case

Delivery Time: 60 days

Payment Terms: L/C/T/T

Supply Ability: 10pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      High Temperature Sublimation Furnace, Silicon Carbon Vapor Deposition Furnace


Place Of Origin:	Hunan, China	Type:	Induction Furnace
Usage:	Heat Treatment Furnace	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC, Bearing, Gear
Brand Name:	Jingtan	Voltage:	380
Weight (t):	2 T	Power (kw):	120
Warranty:	1 Year	Key Selling Points:	Flexible Manufacturing
Limit Temperature:	1500℃	Furnace Structure:	Horizontal
Furnace Body:	Inner And Outer Double-layer Water Cooling Structure	Temperature Control System:	PLC Touch Screen
Heating System:	Inductiong Heating	Condition:	New
Warranty Of Core Components:	1 Year	Showroom Location:	Canada, Turkey, United Kingdom, United States, France, Germany, Russia
Marketing Type:	New Product 2022	Applicable Industries:	Energy & Mining, Other, New Material

Place Of Origin:	Hunan, China
Type:	Induction Furnace
Usage:	Heat Treatment Furnace
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Core Components:	PLC, Bearing, Gear
Brand Name:	Jingtan
Voltage:	380
Weight (t):	2 T
Power (kw):	120
Warranty:	1 Year
Key Selling Points:	Flexible Manufacturing
Limit Temperature:	1500℃
Furnace Structure:	Horizontal
Furnace Body:	Inner And Outer Double-layer Water Cooling Structure
Temperature Control System:	PLC Touch Screen
Heating System:	Inductiong Heating
Condition:	New
Warranty Of Core Components:	1 Year
Showroom Location:	Canada, Turkey, United Kingdom, United States, France, Germany, Russia
Marketing Type:	New Product 2022
Applicable Industries:	Energy & Mining, Other, New Material

Description

1500 Degree High Temperature Sublimation Furnace For Silicon Carbon Vapor Deposition

Products Description

Silicon Oxide Vacuum Sublimation Furnace

(1) A large amount of material, high production efficiency.

(2) The whole process is completely closed and automatic operation to avoid dust flying, and the production site environment is clean and tidy.

(3) The temperature is controlled within 1500 degrees, and the heating rate is fast. It can maintain stable operation under vacuum.

Suitable for mass production of vapor deposition materials such as silicon oxide; High precision temperature difference control, high temperature vacuum furnace.

With high vacuum sublimation, reaction, degreasing, dehydration, vapor deposition material automatic grinding scraping, furnace collection and other special process capabilities.

Model

JT-SHL-118

JT-SHL-226

JT-SHL-385

JT-SHL-804

Furnace Structure

horizontal

Constant Temperature Zone Size

Φ500mm*600mm

Φ600mm*800mm

Φ700mm*1000mm

Φ800mm*1600mm

Furnace Body

The inner and outer double-layer water cooling structure, the contact part of the cooling water made of 304 stainless steel, effectively prevent furnace body from gas leakage

Sublimation System

Heating zone is composed of induction coil, heavy corundum, graphite hard felt and isostatic graphite. And collection area is composed of 310S stainless steel and insulation layer.

Temperature Control System

PLC touch screen centralized control , automatic control with network port

Heating System

induction heating, IGBT power supply with low noise, about 15% energy saving than thyristor

Vacuum System

multistage vacuum pump, vacuum valve, pressure controller and pipelines

Cooling System

closed cooling system, internal circulation with deionized water, external circulation with tap water, automatic water refill, fan heat dissipation

Company profile

Qualification and Patents

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

Patent for carbonization sintering furnace

Patent for bottom discharge graphitization furnace:

Patent for carbon fiber continuous furnace

Patent for high temperature graphitization furnace

Patent for high temperature vacuum hot pressure furnace

Patent for high temperature continuous furifing graphitization furnace

Production process

Customer Photoes

Logistics System All Around the World.

Customer Cooperation Cases

FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
